security fencing formation sample 1

security fencing establishment sample 2

Safety, protection, determent and obstruction wire formation sample 3

Protection, determent, obstruction and razor wire formation sample 4

Security fencing concertina formation sample 5






.........................................................

FLAT COIL DIMENSIONS:

Coil height: 500mm, 700mm, 900mm
Coil length: 14m, 14m, 14m
DOUBLE COIL:

Comprises the 700 mm diam. coil suspended in a 950 mm coil for denser barriers.


SPECIFICATIONS

BLADE PROFILE

  • SHORT BTC
    Width 19,7 mm before gripping

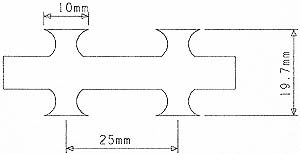

small coil wire blades

Width of blades before gripping

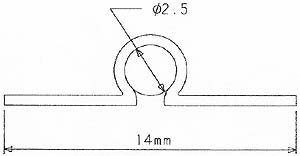

 small coil wire gripped blades_2
Width of blades after gripping


  • MEDIUM BTC
    Heavy Duty Overlapping Clip 2mm × 10mm steel required to fasten wire into CONCERTINA formation.

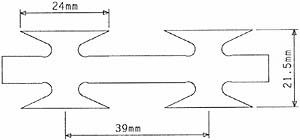

medium concertina blades
Width of blades before gripping

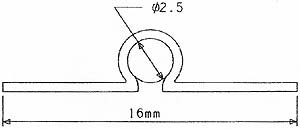

 medium concertina gripped blades_2
Width of blades after gripping


MATERIALS


  • BLADES
0,5 mm thick galvanized steel strip
  • CORE WIRE
2,5 mm diam. high tensile spring steel wire
  • STAINLESS
Stainless BTC is available on request
  • COLOURED
Coloured BTC is available on request



security fencing protection safety razor wire concertina establishment_1
TYPICAL APPLICATIONS

.........................................................
